NodeMCU Setup

These pages describe how to setup a NodeMCU with ESPHome

Build Status build_status.md

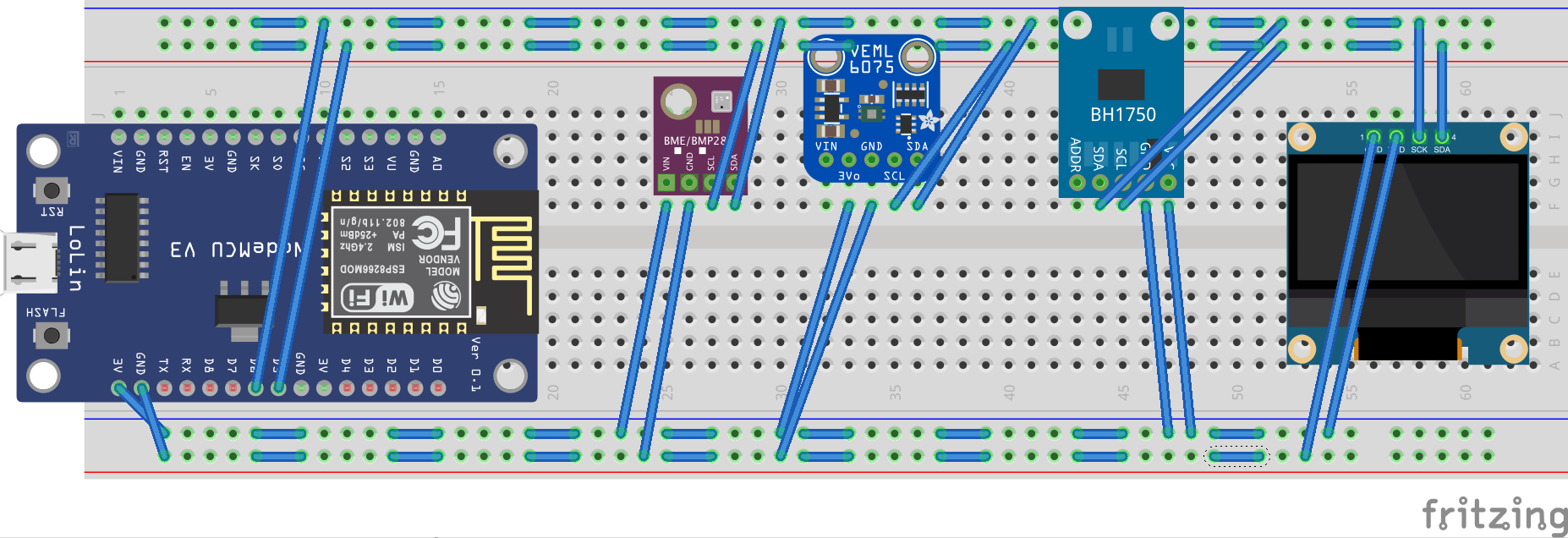

NodeMCU-01 - Family Room

This nodemcu has the following sensors

Device What Does it Do
bme280_i2c Temperature
bh1750 Illuminance
VEML6075 UVA / UVB
ssd1306_i2c Display

NodeMCU-1 Image

NodeMCU-02 - Lounge Room

This nodemcu has the following sensors

Device What Does it Do
dht11 Temperature

NodeMCU-02 Image

NodeMCU-03 - Study Temperature

This nodemcu has the following sensors

Device What Does it Do
bme280_i2c Temperature

NodeMCU-03 Image

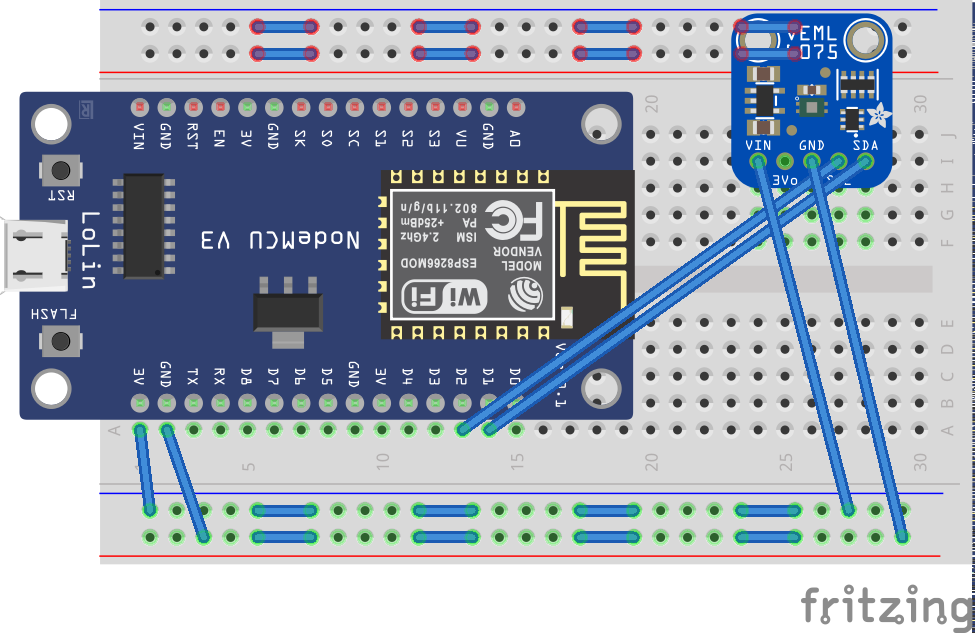

NodeMCU-04 - Study UVA Sensors

This nodemcu has the following sensors

Device What Does it Do
VEML6075 UVA / UVB

NodeMCU-04 Image

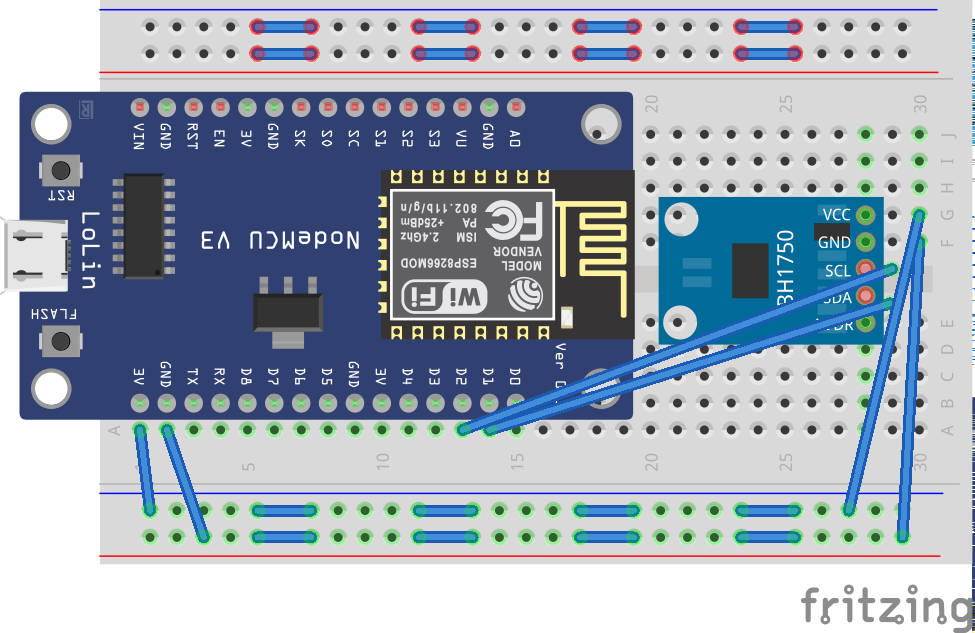

NodeMCU-05 - Study Illuminance

This nodemcu has the following sensors

Device What Does it Do
bh1750 Illuminance

NodeMCU-05 Image

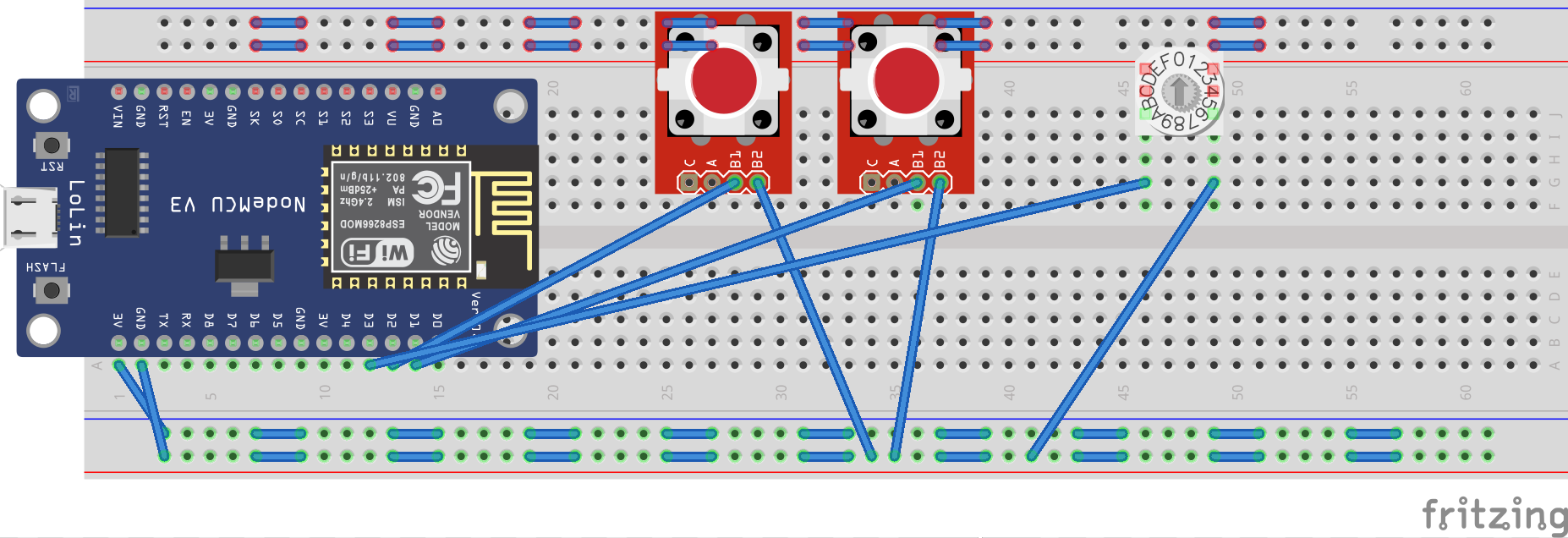

NodeMCU-06 - Weather Station

This nodemcu has the following sensors

Device What Does it Do
Pulse Counter Wind Speed
Pulse Counter Rain Bucket
Resistance Wind Direction

NodeMCU-06 Image

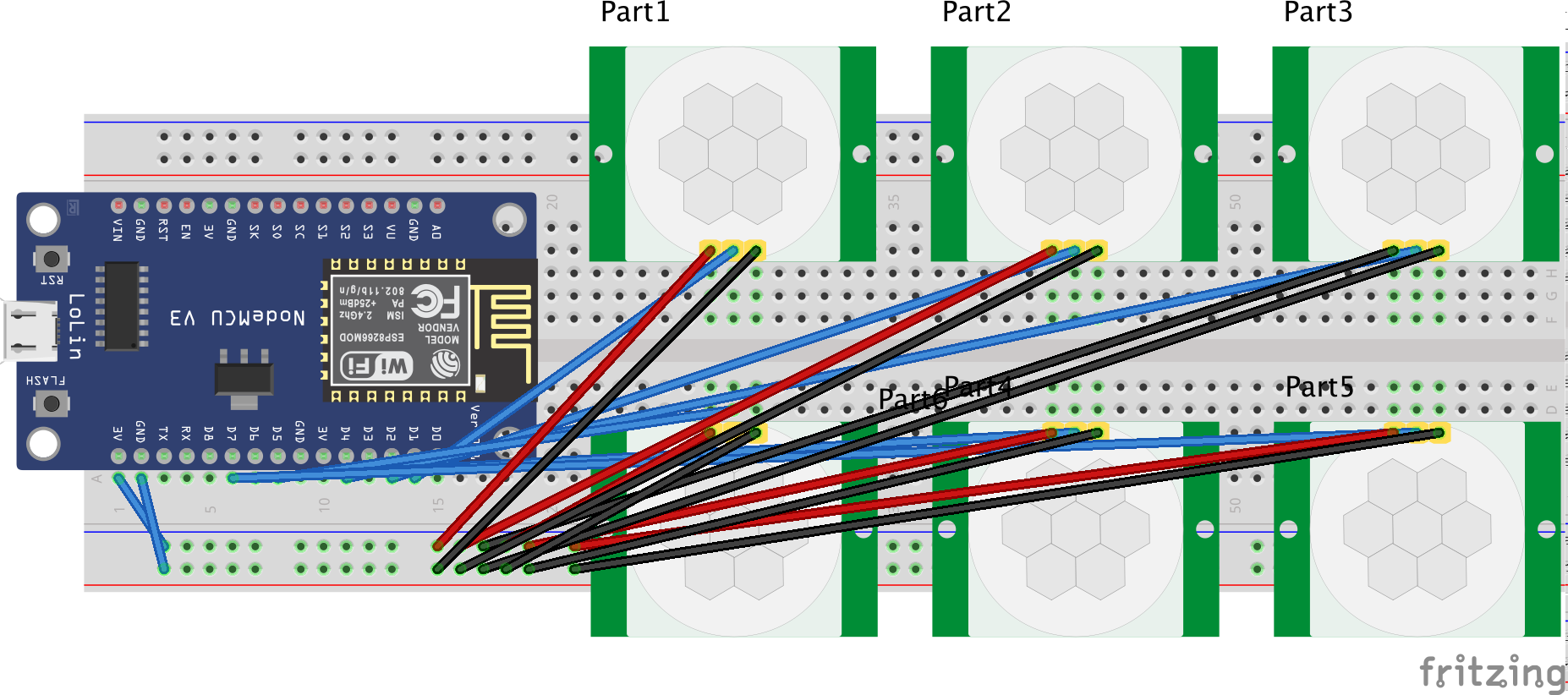

NodeMCU-07 - Alarm System

This nodemcu has the following sensors

Pin Device What Does it Do
D6 PIR Family Room
D5 PIR Lounge Room
D7 PIR Study
D2 PIR Garage
D1 PIR Master Bedroom

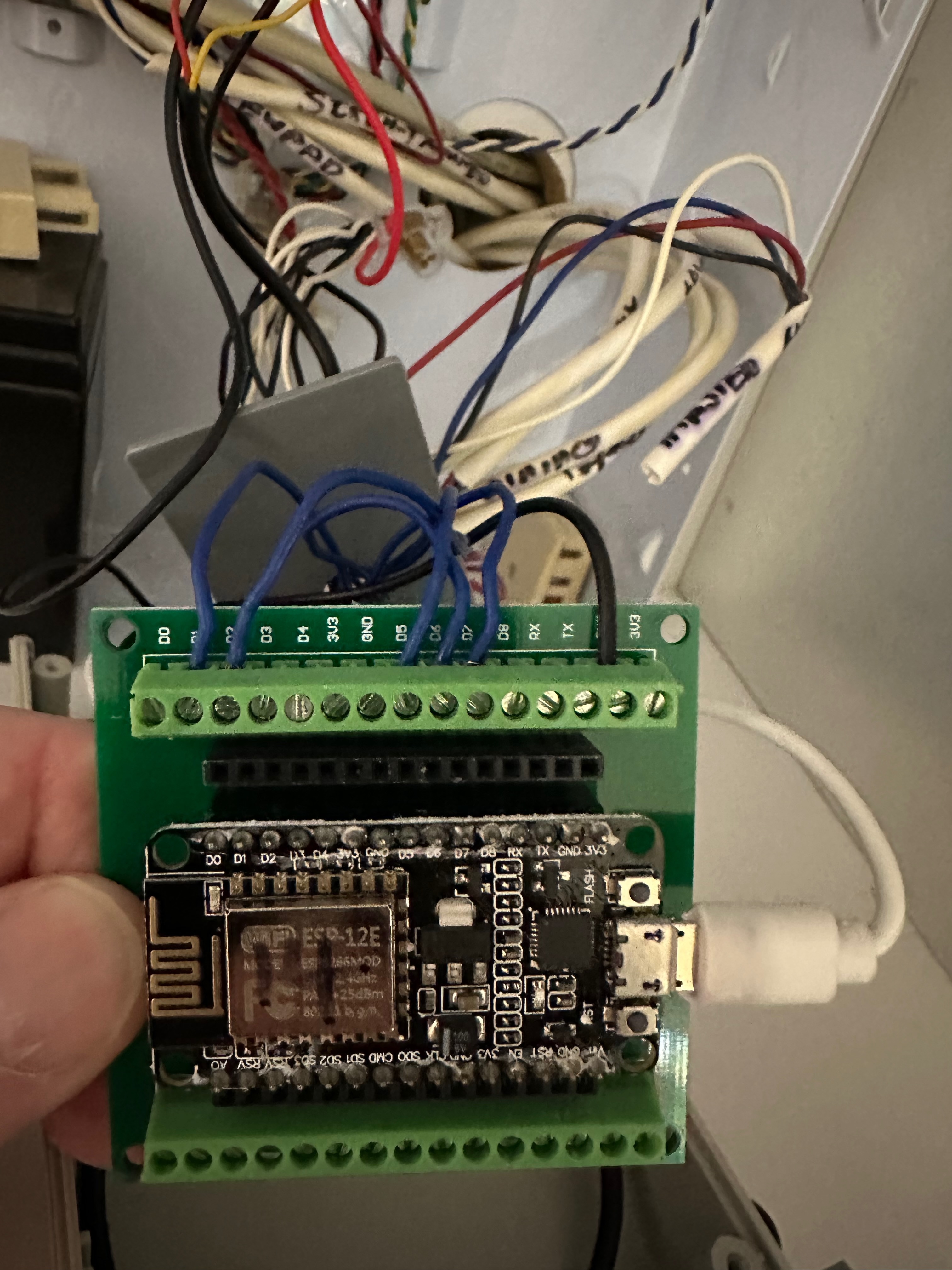

NodeMCU-07 Image NodeMCU-07_Actual_Image

NodeMCU-08 - Temperature for Rack

This nodemcu has the following sensors

Device What Does it Do
dht11 Temperature

NodeMCU-08 Image

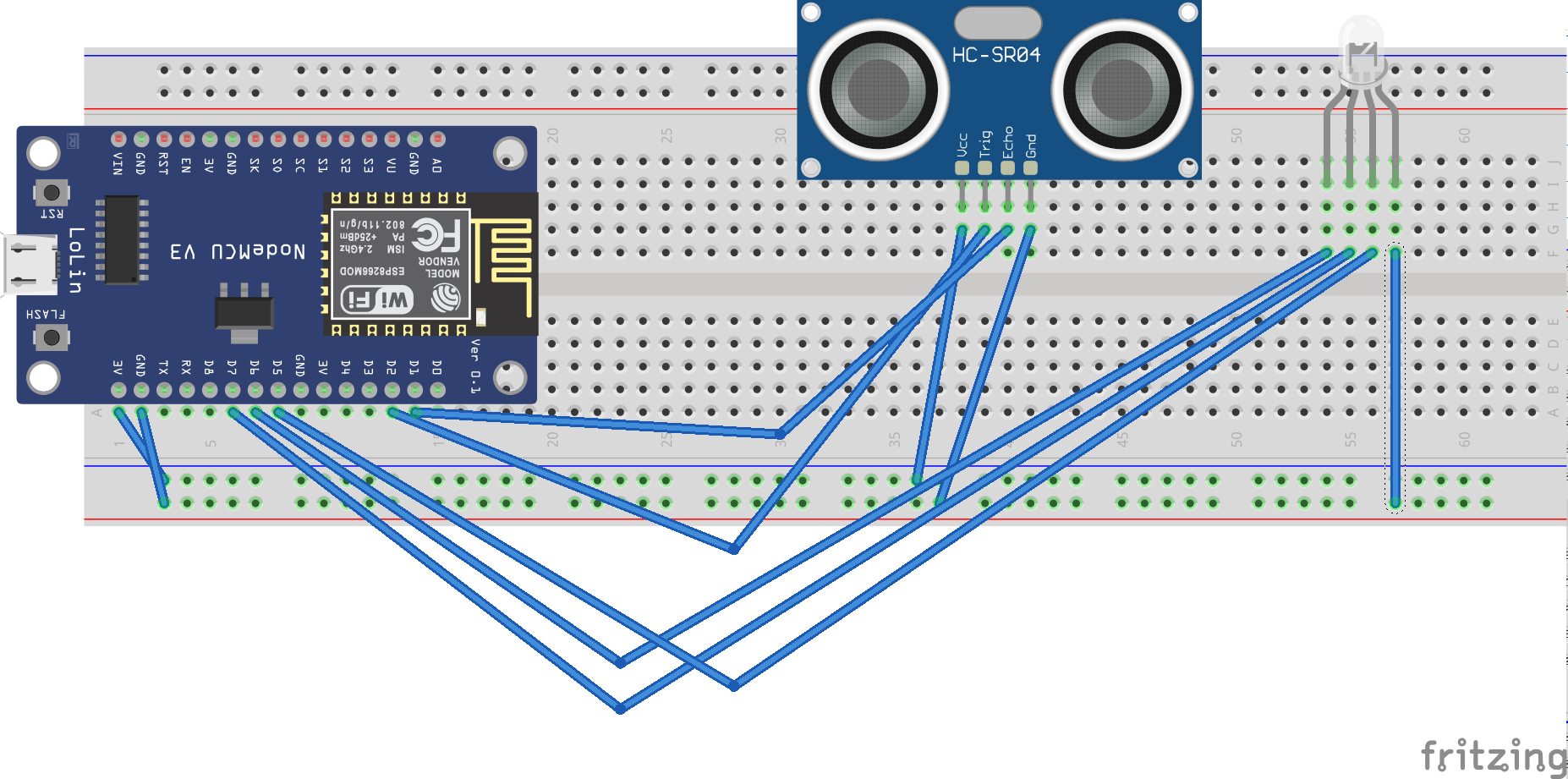

NodeMCU-09 - Ultrasonic Detector

This nodemcu has the following sensors

Device What Does it Do
HC-SR04 Ultrasonic Distance Sensor
RGB Led 3 Way RGB Led

NodeMCU-09 Image

NodeMCU-17 - Temperature for Caravan

This nodemcu has the following sensors

Device What Does it Do
dht11 Temperature

NodeMCU-17 Image
