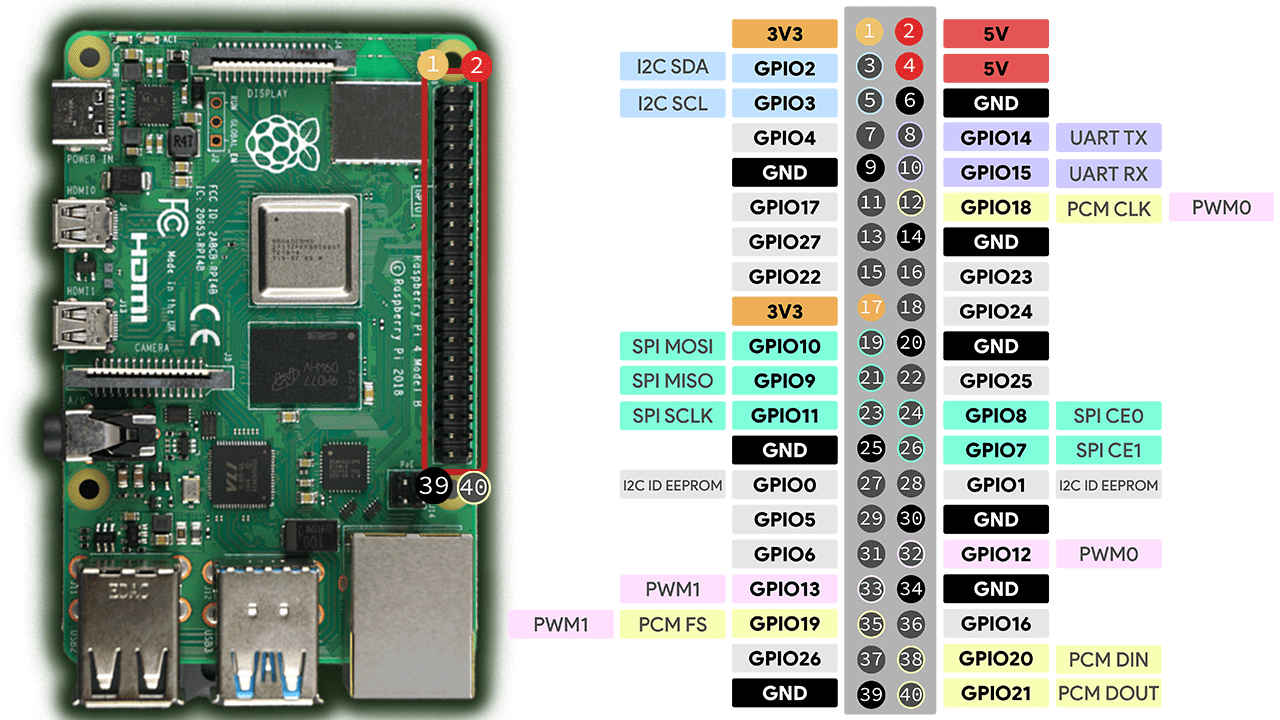

Which Pins are in use on the WeatherStation

Pin	GPIO / Output	Connected to	Description	Wire Colour From Pin	Test Rig
1	3v3	1-Wire	DS 12 - Vcc	Grey Wire	White Wire
2	5v
3	GPIO 2 ( i2c1 sda )	BME280		Blue Wire
4	5v
5	GPIO 3 ( i2c1 scl )	BME280		Green Wire
6	Ground	1-Wire	DS12 - Ground Wire	Black Wire	Black Wire
7	GPIO 4 ( Data )	1-Wire	DS12 - ground, DS18 - case	White with Black	Grey Wire
8	GPIO 14
9	Ground
10	GPIO 15
11	GPIO 17
12	GPIO 18
13
14
19	GPIO 10	SPI MOSI	To the Spinning Chip	Brown Wire
21	GPIO 9	SPI MISO	To the Spinning Chip	Orange Wire
23	GPIO 11	SPI CLK	To the Spinning Chip	Yellow Wire
24	GPIO 8	SPI CEO	To the Spinning Chip	Red Wire
29	GPIO 5		Wind Spinner	Green Wire
31			Rain Bucket	Purple Wire

WindSpeed uses the RPi.GPIO module and pin =5 Rain = 2 pins Wind = 2 pins Wind Direction = 4 pins BME = 4 pins DS18 - 3 pins

Basic CPU Temp = cputemp

Do-ALl bme280 / dht / smbus / ds18b BME = I2c Port = 1 0x76 DS18 - Kernel Module then /sys/bus/w1/devices
